상세 정보 |
|||
| 제품 기원: | 중국 | 헤드 넘버: | 2 개 PC |
|---|---|---|---|
| 시스템을 운영하세요: | 임베디드 시스템 | 사용자 인터페이스: | 터치스크린 |
| 전원: | 5000A / 8000A / 10000A 선택 | 능률: | 3800개/시간 |
| 장비 스트로크: | 500*350(mm) 약 760 18650 셀 | 최대 부하 용량: | 200-400pcs (표준 18650 리튬 배터리) |
| 운영 체제: | 임베디드 시스템 + 남자 - 기계 스크린 | 전송 모드: | 스텝 + 벨트 + 수입 정밀 선형 가이드 레일(옵션 서보 + 나사) |
| 강조하다: | 5000A lithium battery spot welder,automatic 18650 spot welding machine,21700 battery spot welder with warranty |
||
제품 설명

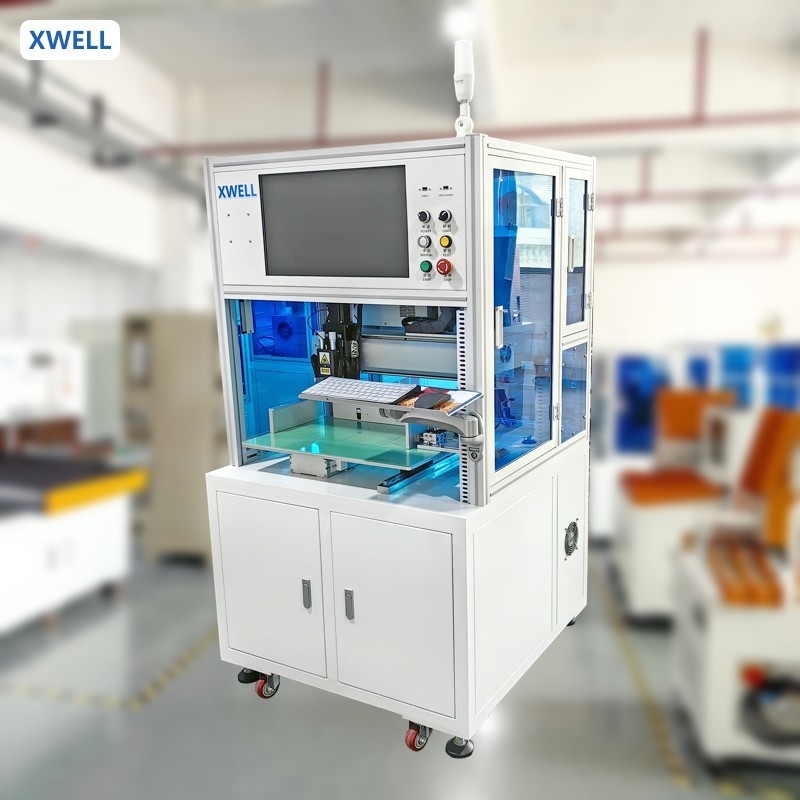

5000A Electric Spot Welder 18650 21700 Automatic Battery Spot Welding Machine
Description
Automatic battery spot welding machines play a key role in cylindrical battery pack assembly lines. When multiple cells are connected in series or in parallel to form a battery pack, the spot welding machine can quickly and accurately weld the tabs of the battery cells to the connecting pieces (such as nickel sheets), thereby forming a battery pack with a specific voltage and capacity to meet the power requirements of various applications.
Features
- Support breakpoint start, automatic start, and manual start.
- Cold solder joint and sealing off alarm.
- Easy program, support matrix, array and point program, can store 100 group parameters.
- Welding needle abrasion alarm.
- Build-in welding current monitor, can display real time welding current.
- Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other
- lithium battery packs spot welding.
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
