상세 정보 |
|||
| 규정 준수: | CE 인증 | 리드 타임: | 7 일 |
|---|---|---|---|
| 테스트 속도: | 0.1-500mm/min | 작동 전압: | AC 220V 50Hz~60Hz |
| 여정: | 200mm | 제어 방법: | 컴퓨터 제어 |
| 전압 범위: | 0-150V | 전류 전류: | 20A |
| 지속 가능한 부하 전력: | 6kw | 데이터 출력: | 엑셀,TXT |
| 시험온도: | 130C+2.0℃;(판매 수수료 없는 매출 시험) | 최소 공기 압력: | 5.0kpa |
| 통신수단: | TCP / IP 프로토콜 | 전기 축 도동: | ≥450mm |
| 강조하다: | CCD battery pack inspection machine,battery pack polarity tester,cell polarity inspection machine with warranty |
||
제품 설명

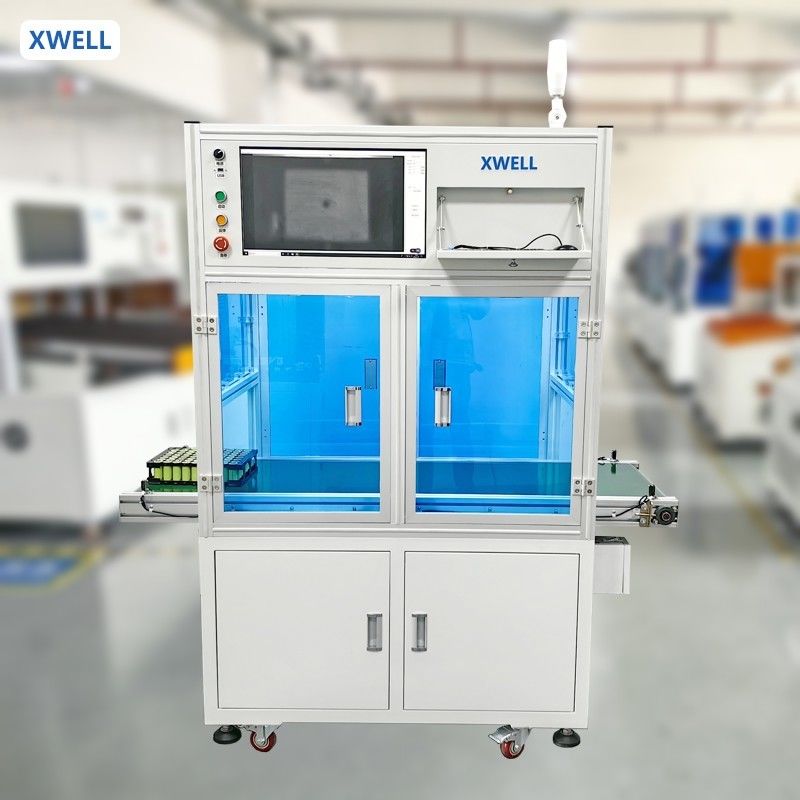

CCD Cell Polarity Inspection Machine For Battery Pack Inspection
1. Function description
CCD visual inspection machine is actually a detection device that transmits the collected image signals to a dedicated image processing system through the CCD image sensor of a machine vision product, and converts the signals into digital signals based on the distribution of pixels and information such as brightness and color; the image system performs various operations on these signals, extracts the characteristics of the target, and then controls the action of the on-site equipment based on the judgment results.
CCD visual inspection equipment can replace the human eye for measurement and judgment, and is used for the production, assembly or packaging inspection of valuable equipment.
2. Process flow
Feeding and positioning of electric core → positive and negative pole detection → positive and negative solder joint detection (CCD) → NG automatic sorting → OK automatic discharging
Parameter
| item | value |
| Power supply | AC220V/50Hz |
| Power | 600W |
| Suitable for cell | 14430, 14500, 18500, 18620, 21700, 26650... |
| Inspection size | 400*300 mm, customizable |
| Inspection degree | 360° |
| Inspection speed | 1 s/pcs |
| Merchine Size | L850*W80 |
Details:
