Insulation Highland barley paper 18650 21700 lithium battery hollow insulating paper gasket high temperature motor green shell paper
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | XWELL |
| 인증: | CE |
| 모델 번호: | 절연 고산 보리 종이 |
결제 및 배송 조건:
| 최소 주문 수량: | 1pcs |
|---|---|
| 가격: | USD $0.1~$1000 |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 5-7 일 |
| 지불 조건: | T/T, Western Union, L/C, D/A, D/P. |
| 공급 능력: | 한 달에 100000 마리의 PC |
|
상세 정보 |
|||
| 두께: | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 관습 | 모델 번호: | 아래 모델 목록을 참조하십시오 |
|---|---|---|---|
| 제품 이름: | 하이랜드 보리 종이 테이프 | 색상: | 시안 |
| 두께 (밀리미터): | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 관습 | 너비 (mm): | 1mm ~ 1000mm | 관습 |
| 길이 (m): | 50 | 100 | 200 | 300 | 관습 | 애플리케이션: | 18650 21700 26650 배터리 |
| 강조하다: | Highland Barley Paper Tape for lithium battery,18650 battery barley paper tape,21700 lithium battery adhesive tape |
||
제품 설명
Insulation Highland barley paper 18650 21700 lithium battery hollow insulating paper gasket high temperature motor green shell paper
Product Overview

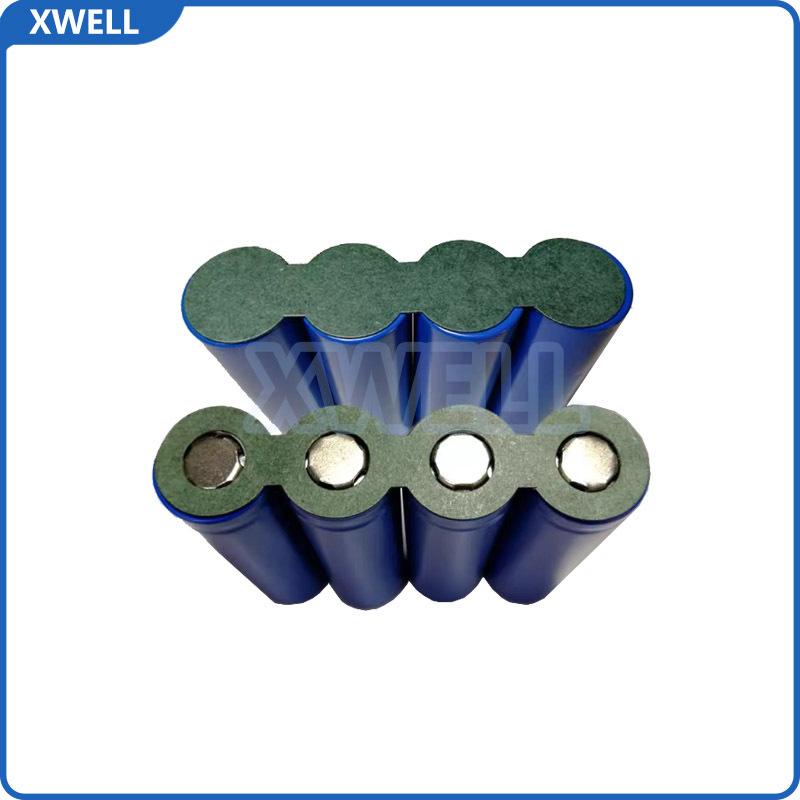

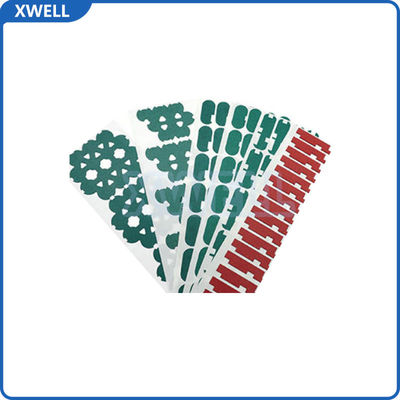

Our Insulation Highland Barley Paper is made laminating a polyester film to one layer of insulation paper. The product can be supplied cut in rolls, sheets or die-cut pieces according to customer specs. ideal for 18650/21700 lithium batteries as hollow insulating gaskets. Also fits high-temperature motors. Features green shell, offers reliable insulation, perfect for battery protection.
Key Features
- Universal Compatibility: Designed specifically for 18650/21700 lithium batteries as hollow insulating gaskets, with additional applications in high-temperature motors.
- Precision Engineering: Manufactured to standard specifications for reliable insulation, eliminating the need for additional cutting while effectively preventing current leakage.
- Thermal Stability: Maintains consistent performance under high-temperature conditions, ensuring safe operation of electrical equipment.
Technical Specifications
| Properties | Units | Values |
|---|---|---|
| Nominal thickness | mm | 0.15 | 0.18 | 0.20 | 0.23 | 0.25 | 0.3 | 0.35 |
| Thickness tolerance | mm | ±0.02 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.04 |
| Grammage and tolerance | g/m² | 140±20 | 190±28 | 220±33 | 260±39 | 300±45 | 350±52 | 425±63 |
| Film Nominal Thickness | mm | 0.05 | 0.075 | 0.1 | 0.125 | 0.15 | 0.19 | 0.25 |
Primary Applications
- Battery Safety: Prevents insulation wear and short circuits that could lead to battery fires
- Component Protection: Serves as a durable spacer between metal components
- Extended Lifespan: Reduces wear and tear to prolong battery service life
Quality Assurance
- Compliant with UL and IEC electrical insulation standards
- Custom colors and sizes available for OEM requirements
- Competitive bulk pricing for large volume orders
